ZLP800 1.8kw 3phase 380V 50Hz china aluminium scaffolding

FOB Reference Price:Get Latest Price
US $1,800-2,500 / Sets | 1 Set/Sets (Min. Order)
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUIYANG
Model Number:
ZLP800
Product name:
ZLP800 building painting equipment / electric construction cradle
Voltage:
220V/380V/415V
Material:
Aluminum Alloy or Q235
Certificate:
ISO9001:2008/CE/CCC
Surface treatment:
Powder Painting or galvanized
Lifting height:
100m
Rated load:
800kgs
Lifting speed:
8.8-9.8m/min
Lifting Height:
100M
Mob/whatsapp:
86-18553491835
Supply Ability
Supply Ability:
80 Set/Sets per Day
Packaging & Delivery
Packaging Details
Mental pallet
Port
QingDao port
Parameter


Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.

Usage and Application:
ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.
Above all, HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.
Contact: Miss Ann WhatsApp:86-18553491835 Company Video: https://youtu.be/uDPE69dO-pY

The Parameters of ZLP series Suspended Platform
Type
ZLP500
ZLP630
ZLP800
1. Rated Load
500kg
630kg
800kg
2. Lifting speed
9.3m/min
9.3m/min
9.3m/min
3. Lifting height
100m
100m
100m
4. Hoist
LTD6.3
LTD6.3
LTD8.0
4.1 Voltage-3 Phase
380V(415V/220V)
380V(415V/220V)
380V(415V/220V)
4.2 Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
4.3 Power
1.5kw x 2
1.5kw x 2
1.8kw x 2
5. Safety Lock
LSG20
LSG20
LSG30
6. Electric Cabinet Parts
Schneider or CHNT
Schneider or CHNT
Schneider or CHNT
7. Platform Sise (LxWxH)
(2.5+2.5)x0.69x1.42m
(2+2+2)x0.69x1.42m
(2.5+2.5+2.5)x0.69x1.42m
8. Steel Wire Rope
4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC
4pcs; 100m/pcs
D=8.3mm; 4x31SW+FC
4pcs; 100m/pcs
D=9.1mm; 4x31SW+FC
9. Electric Cable
(3x2.0+2x1.0mm2) 100m
(3x2.0+2x1.0mm2) 100m
(3x2.5+2x1.5mm2) 100m
10. Suspended Jibs
340kg
340kg
340kg
Lifting Parts Weight
410kg(Steel)
290kg(Aluminum)
480kg(Steel)
340kg(Aluminum)
530kg(Steel)
380kg(Aluminum)
Counter Weight
Cement; 750kg
Cement; 900kg
Cement; 1000kg
Qty of 20" Container
13 sets
13 sets
13 sets

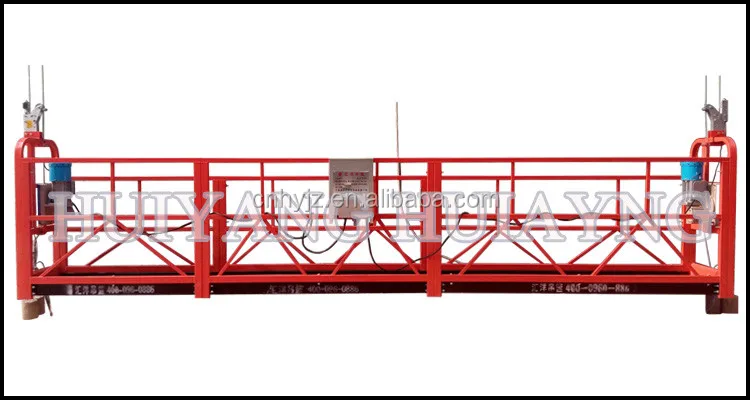

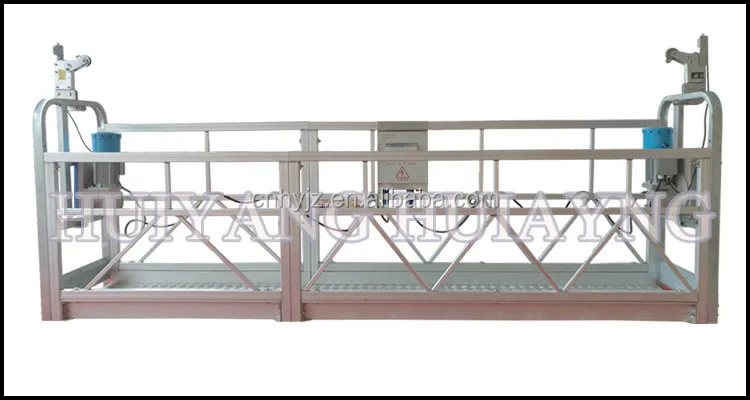

1. Working Cage: Material Q235 Steel with Painting; Material Q235 with HDG; Material Aluminum
1.1 Working Cage is the workplace at heights for the workers.
1.2 L=6m (2+2+2) or (1.5+2+2.5) or (1+2+3) W=0.69m; H=1.42m;
1.3 With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

2. Suspension Mechanism: Surface with Painting or Hot-dipped Galvanized
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

3. Components:
LTD8.0 Hoist, 1.5kw, 2 sets;
LSD30 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.
Components Details

Components 1

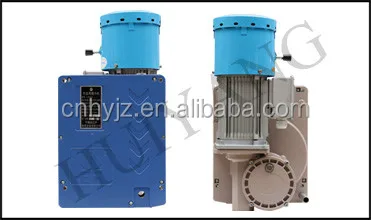

Name: Hoist                                      Brand: HUIYANG
Model: LTD6.3                                   Quantity: 2 sets
Lifting Speed 9.3±0.5m/min Lifting Force: 6.3KN

Name: Motor                             Brand: Tianjin YONGHENG
Power: 1.5kw*2       Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed 1420rpm     Weight:48kgx2

Components 2

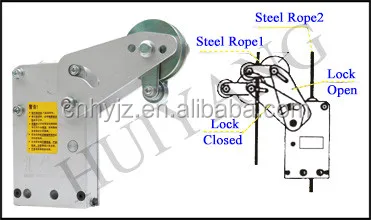

Name: Safety Lock        Brand: HUIYANG
Model: LSG20                 Quantity: 2 sets
Locking Rope Angle: 3°~8° Allow impulsive force 20KN
Steel Wire Diameter: 8.3mm Weight: 5kgx2

Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

Components 3

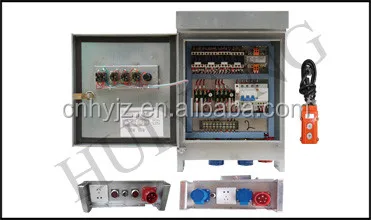

Name: Electrlic Control Cabinet   Brand: HUIYANG
Surface HDG With manual Switch
Components  Brand: Schneider or CHNT
On Electric Control Cabinet, there are 4 buttons and a 220V
50Hz outlet for necessary use. ( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )

Components 4

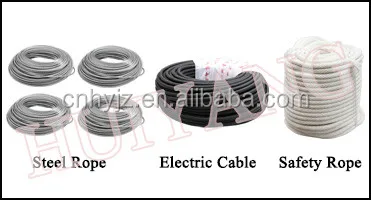

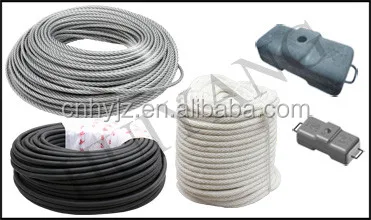

Name: Steel Rope      Brand: Fasten
Quantity: 4pcs            Length=100m/pcs;
Diameter=8.3mm      Weight:25kgx4
4x31SW+FC

Nylon Safety Rope 1Pcs=100m
Electric Cable: 1Pcs=100m (3x2.0+2x1.0mm2)
Counterweight: (Optional) Cement or Cast Iron

Certifications
Our Service

Pre-Sales Service

* Factory Show.
* Consulting Support
* Fast Quotation and PI Feedback
* View our Factory.
* Sample testing support.

After-Sales Service

* Video Training: Installation Instructions.
* Engineer Online Service.
* Email Instruction.
All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
Packing & Delivery
Packaging
Size
3m³
Weight
940kg (without Counterweight)



Packaging Details
MOQ: 1set
1-5 sets packed in wooden case.
5-13 sets be nude inside the Container.
Packaging
Size
3m³
Weight
940kg (without Counterweight)



Packaging Details
MOQ: 1set
1-5 sets packed in wooden case.
5-13 sets be nude inside the Container.
