Top Grade ZLP1000 7.5m 1000kg Painting Suspended Rope Platform

  • 1 - 4 Sets
    US $2680.00
  • 5 - 8 Sets
    US $2600.00
  • >=9 Sets
    US $2550.00
Color:
Report Suspicious Activity
Overview
Quick Details
Type:
Work Platform
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUIYANG
Model Number:
ZLP1000
Load capacity:
1000kg
Working Cage:
7.5m(2.5+2.5+2.5)
Lifting Height:
100m
Lifting Speed:
9-11m/min
Voltage:
3 Phase 380V 50Hz
Certificate:
CE, CCC, ISO9001
Material:
Steel Q235
Surface Treatment:
Painting
WhatsApp:
86-18706398887
Skype:
duranliu1
Supply Ability
Supply Ability:
50 Set/Sets per Day
Packaging & Delivery
Packaging Details
1-5 sets packed with Wooden Case.
Morn than 5 sets will be nude t in container..
Port
Qingdao or Tianjin Port
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(day) 15 To be negotiated
Video Description
Parameters
Working Principle:
The platform is driven by electric hoist and wire rope, running against the building facade while the suspension mechanism was erected on buildings or structures.

Usage and Application:

ZLP series Suspended Platform belongs to high-rise working construction machinery, mainly used to install curtain wall, facade cleaning or other works such as plaster pulp, veneer, paint coatings, oil paint, or cleaning and maintenance, etc., can also be used for large tanks, bridges, dams and other construction operations.

Above all. HUIYANG Platform can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.


The Parameters of ZLP series Suspended Platform
      Type
ZLP630
ZLP800
ZLP1000
1.   Rated Load
630kg
800kg
1000kg
2.   Lifting speed
9.3m/min
9.3m/min
9.3m/min
3.   Lifting height
100m
100m
100m
4.   Hoist
LTD6.3
LTD8.0
LTD10.0
4.1 Voltage-3 Phase
380V(415V/220V)
380V(415V/220V)
380V(415V/220V)
4.2 Frequency
50Hz/60Hz
50Hz/60Hz
50Hz/60Hz
4.3 Power
1.5kwx2
1.8kwx2
2.2kwx2
5.   Safety Lock
LSG20
LSG30
LSG30
6.   Electric  Cabinet
Schneider or CHNT parts
Schneider or CHNT parts
Schneider or CHNT parts
7.   Platform Sise (LxWxH)
   (2+2+2)x0.69x1.42m
(2.+2+2+1.5)x0.69x1.42m
(2+2+2+1.5)x0.69x1.45m

8.   Steel Wire Rope
4pcsx100m
4x31SW+FC D=8.3mm
4pcsx100m
4x31SW+FC D=9.1mm
4pcsx100m
4x31SW+FC D=8.6mm
9.   Special Cable
(3x2.0+2x1.0mm2)  100m
(3x2.5+2x1.5mm2 ) 100m
(3x2.5+2x1.5mm2)  100m
10. Suspended Jibs
340kg
340kg
340kg
Lifting  Parts Weight
480kg(Steel)
340kg(Aluminum)
530kg(Steel)
380kg(Aluminum)
600kg(Steel)
450kg(Aluminum)
Counter Weight
900kg
100kg
1000kg
Qty of 20" Container
13 sets
10 sets
10 sets
Product Description

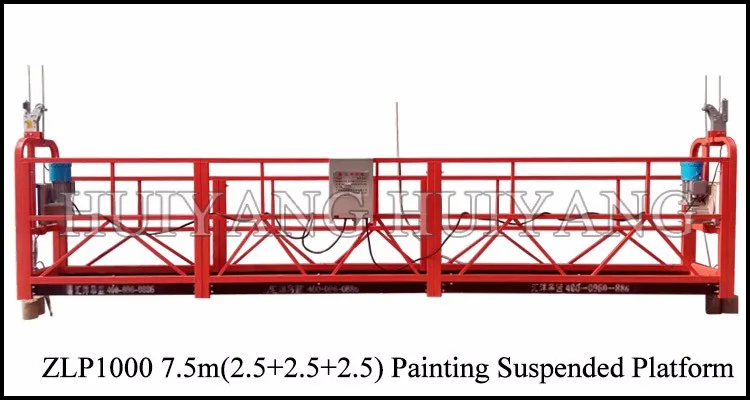

1. Working Platform:  Material Q235 Steel with Galvanised. ( Steel+Painting or Aluminum Alloy+Painting is available also)

 1.1  Working Platform is the workplace at heights for the workers.

 1.2  Length of platform: 7.5m(2.5+2.5+2.5)  (2+2+2+1.5)

 1.3  With caster wheel fitted underneath, the platform is easy to move.

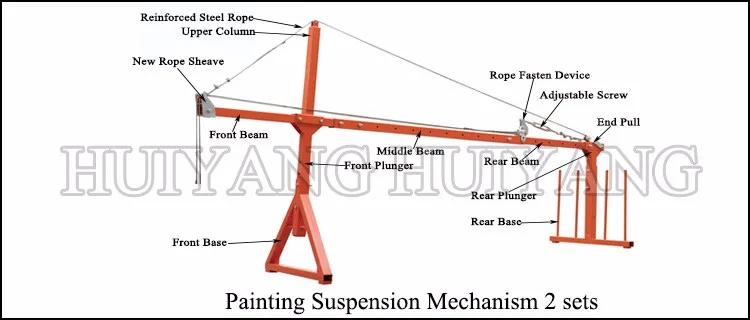

2. Suspension Mechanism:    Surface with Painting or Hot-dipped Galvanized

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.


3. Components:
LTD10.0 Hoist, 2.2kw, 2 sets;
LSD30 Safety Lock, 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, Rubber, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

Components Details

Components 1

Name: Hoist                                       Brand: HUIYANG

Model: LTD10.0                                Quantity: 2 sets

Lifting Speed 9.3±0.5m/min         Lifting Force:  10.0KN


Name: Motor                                   Brand: Tianjin YONGHENG

Power: 2.2kw*2            Voltage: 3 Phase 380/220V 50/60Hz
Rotational Speed 1420rpm           Weight:82kgx2

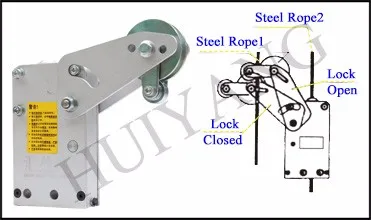

Components 2

Name: Safety Lock                   Brand: HUIYANG
Model: LSG30                            Quantity: 2 sets
Locking Rope Angle 3°~8°      Allow impulsive force 20KN
Steel Wire Diameter 9.1mm    Weight:5.5kgx2


Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

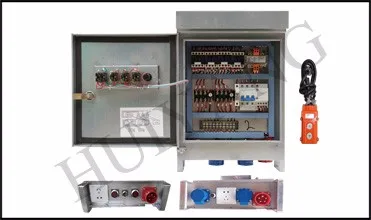

Components 3

Name: Electrlic Cotrol Cabinet        Brand: HUIYANG
Surface Cold Galvanized                   With manual Switch

Components Brand: Schneider or CHNT

On Electric Control Cabinet, there are 4 buttons and a 220V

50Hz outlet for necessary use.

( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )

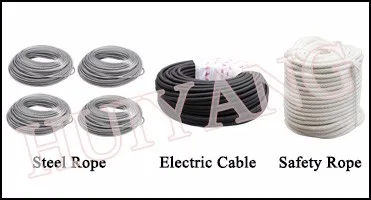

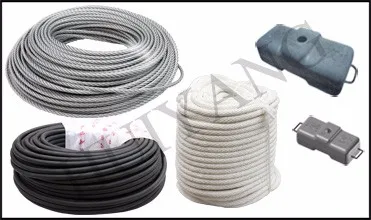

Components 4

Name: Steel Rope Brand: Fasten
Length=100m/pcs 4pcs Weight:30kgx4
Diameter=9.1mm 4x31SW+FC

Name: Nylon Safety Rope 1Pcs=100m
Name: Electric Cable: 1Pcs=100m (3x2.5+2x1.5mm2), Rubber
Name: Counter Weight (Optional): Cement or Cast Iron

Certifications

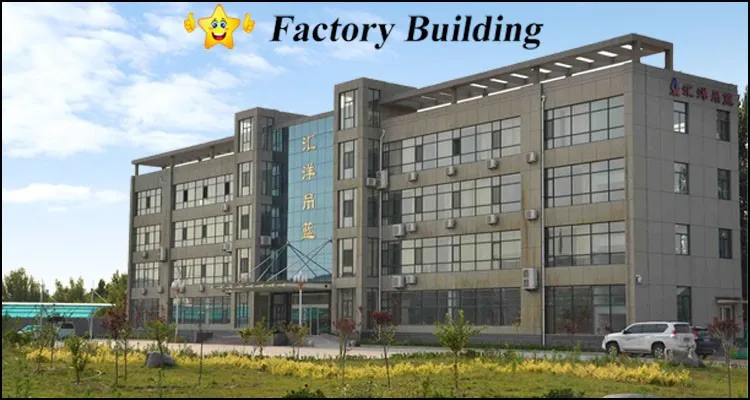

Company Introduction

HUIYANG Company Brief.

Ningjin Huiyang Construction Equipment Co., Ltd,established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.

Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.

Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.


No matter what structure needs, everything is easier with Huiyang.
Contact me: WhatsApp: 86-18706398887 www.facebook.com/liuduran1

Our Service

Pre-Sales Service

* Factory Show.

* Consulting Support

* Fast Quotation and PI Feedback

* Deposit.

* Sample testing support.

After-Sales Service

* Video Training: how to instal the machine.

* Engineer Online Service.

* Email Instruction.

All products purchased from our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

FAQ.

1. How much is this suspended platform?
    Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.
2. Are you a factory or trading company?
    We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.
3. What quality certificate you own for your products?
    Our products own CCC, CE and ISO9001 certificate.
4. How about the price?
    Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
5. Payment term?      T/T or L/C at sight.
6. Spare parts & guarantee?
   If any parts get damaged because of quality within 12 months after shipping date.

   We will send new parts to replace right away.
7. Can you make suspended platform with our brand?    Yes.
8. Delivery time? According to order quantity, 10-20 working days will be finished after getting the deposit.

Packing & Delivery
Packaging
Size
3m³
Weight
900kg (without Counterweight)

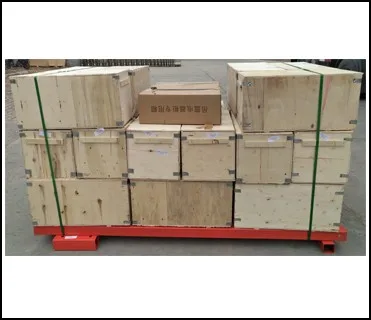

Packaging Details
MOQ: 1set

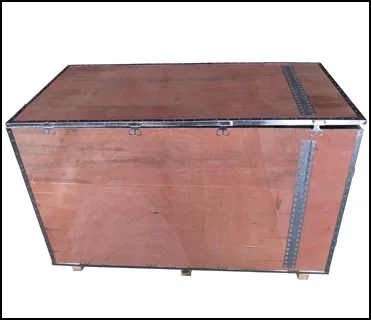

1-6 sets packed in wooden case.
Morn than 6 sets will be packed by metal pallet in container..
Packaging
Size
3m³
Weight
900kg (without Counterweight)
Packaging Details
MOQ: 1set
1-6 sets packed in wooden case.
Morn than 6 sets will be packed by metal pallet in container..
